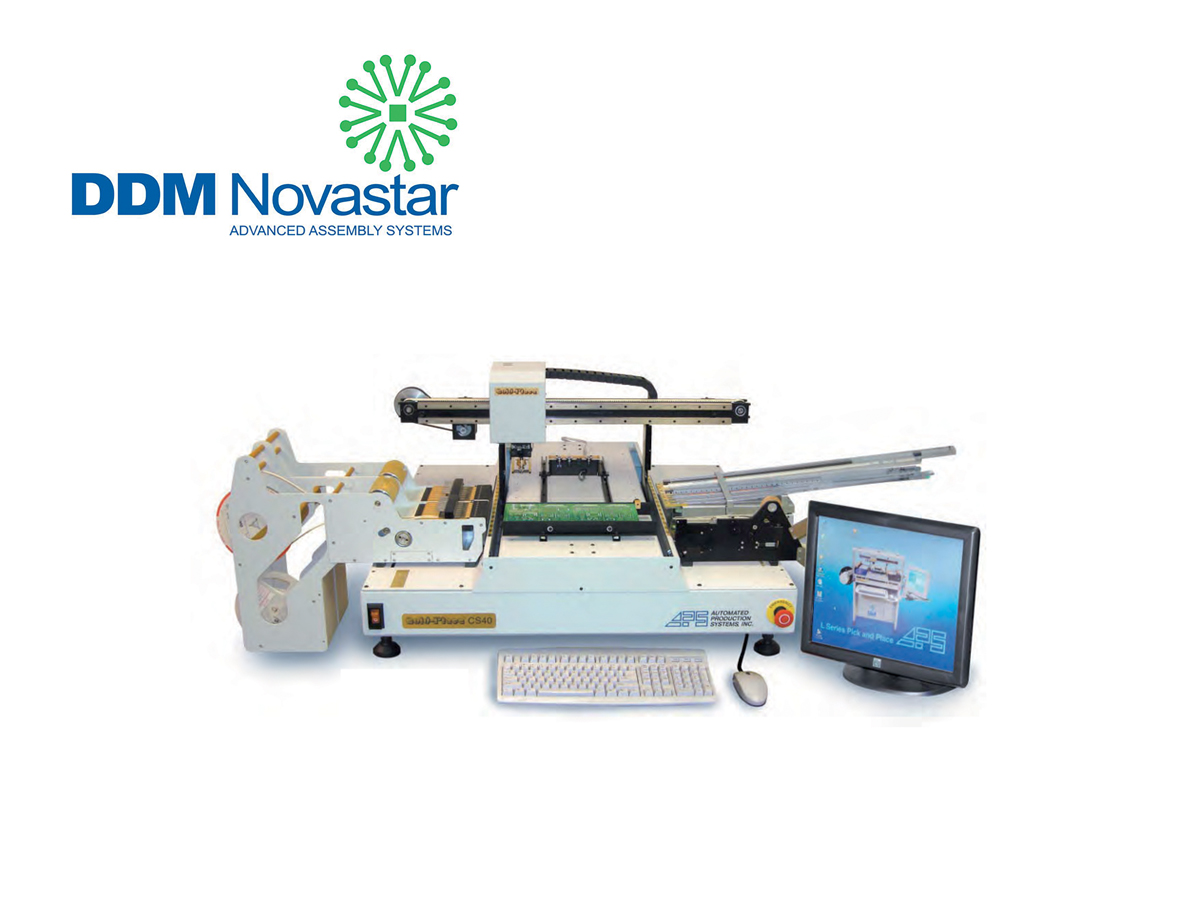

The NovaPlace Series: L-NP00, L-NP32, L-NP64, and L-NP64S

Your Economic Solution for Easy Start-Up in PCB Production



  • Pilot Manufacturing
  • Low Volume Production
  • Prototyping
  • Product Development
  • Short Run, High-Mix Manufacturing Applications



System Features

  • Provides affordable automatic pick and place operation in a tabletop system
  • Easy to set up, easy to program and easy to use with WindowsTM based software
  • CAD editing Software
  • System includes 4 position nozzle changer for most SMT component sizes
  • Placement accuracy, up to 0.001"
  • Uses Micro Stepper Technology
  • Enhanced Accuracy & Repeatability with Linear Scales & Encoders
  • Cut tape strip holders available in various widths & configurations
  • Optional convenient SuperStripTM feeders for short tape strips
  • Inserts available for stick/tube/loose components in a vibratory feeder for
    SMT components including discretes, 0402s, 0603s, SOICs, PLCCs,
    and 20 mil pitch QPPs
  • Individual 8, 12, 16, 24, 32 & 44 mm & 12 lane 8mm tape bank feeders
    available. (Not available on the L-NP00 Model)
  • Placement rates up to 2100 CPH



Model Comparisons

SPECs L-NP00 L-NP32 L-NP64 L-NP64S
Cut Tape Strips

Electric Tape Feeders 0 Up to 48 Up to 96 Up to 96
Placement Accuracy ± 0.004” ± 0.004” ± 0.004” ± 0.001”
Smallest Component 0402 0402 0402 0201
Fine Pitch Capability 25 mil 25 mil 25 mil 15 mil
Closed Loop System No No No

Yes-(Linear Scales & Digital Encoders)







Operation

Once a specific PCB is programmed, the machine automatically picks up each component from its designated feeder or tray, centers the part and moves to the placement location, and accurately places the part. The feeders automatically position the next component for pick-up.

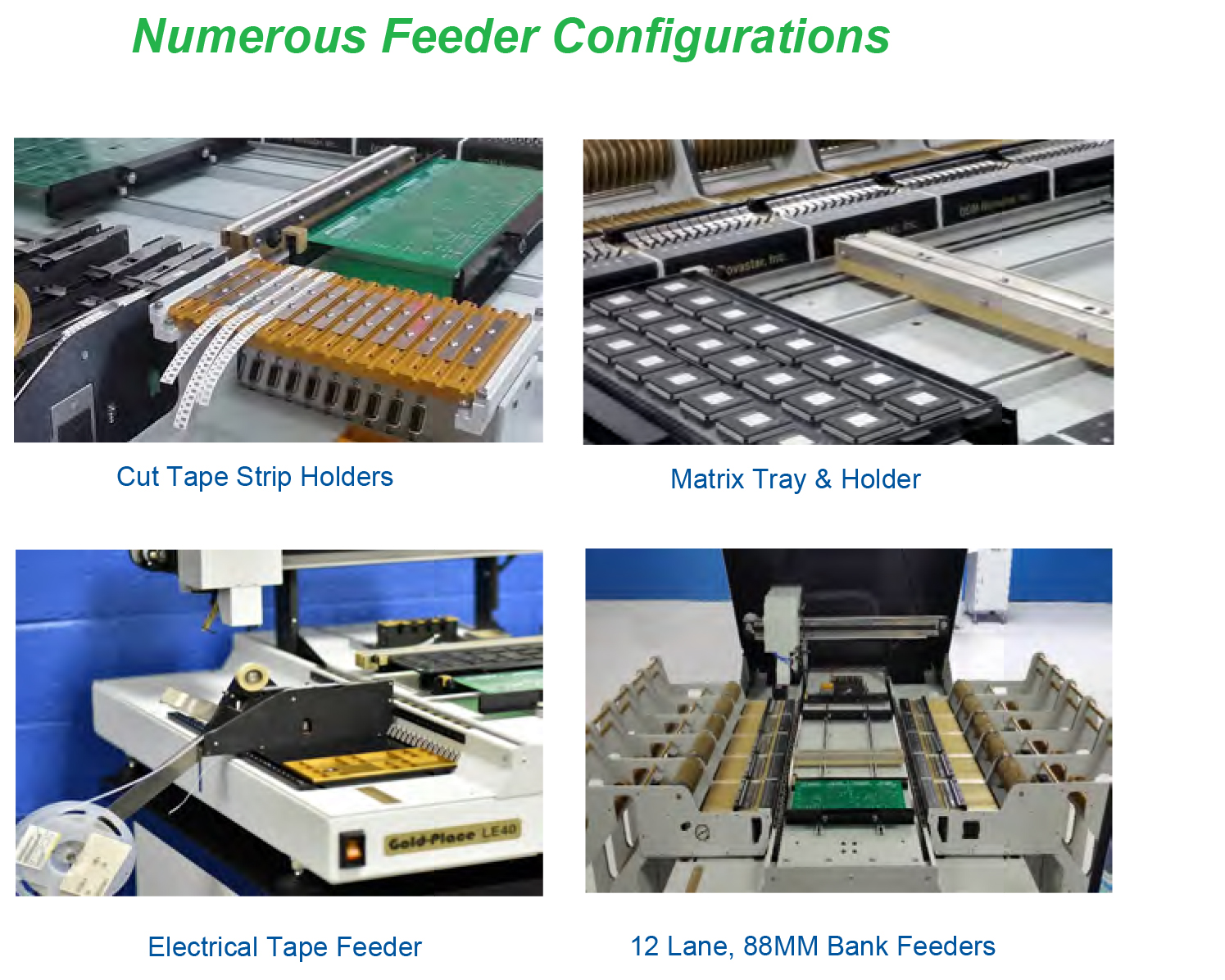

Feeders

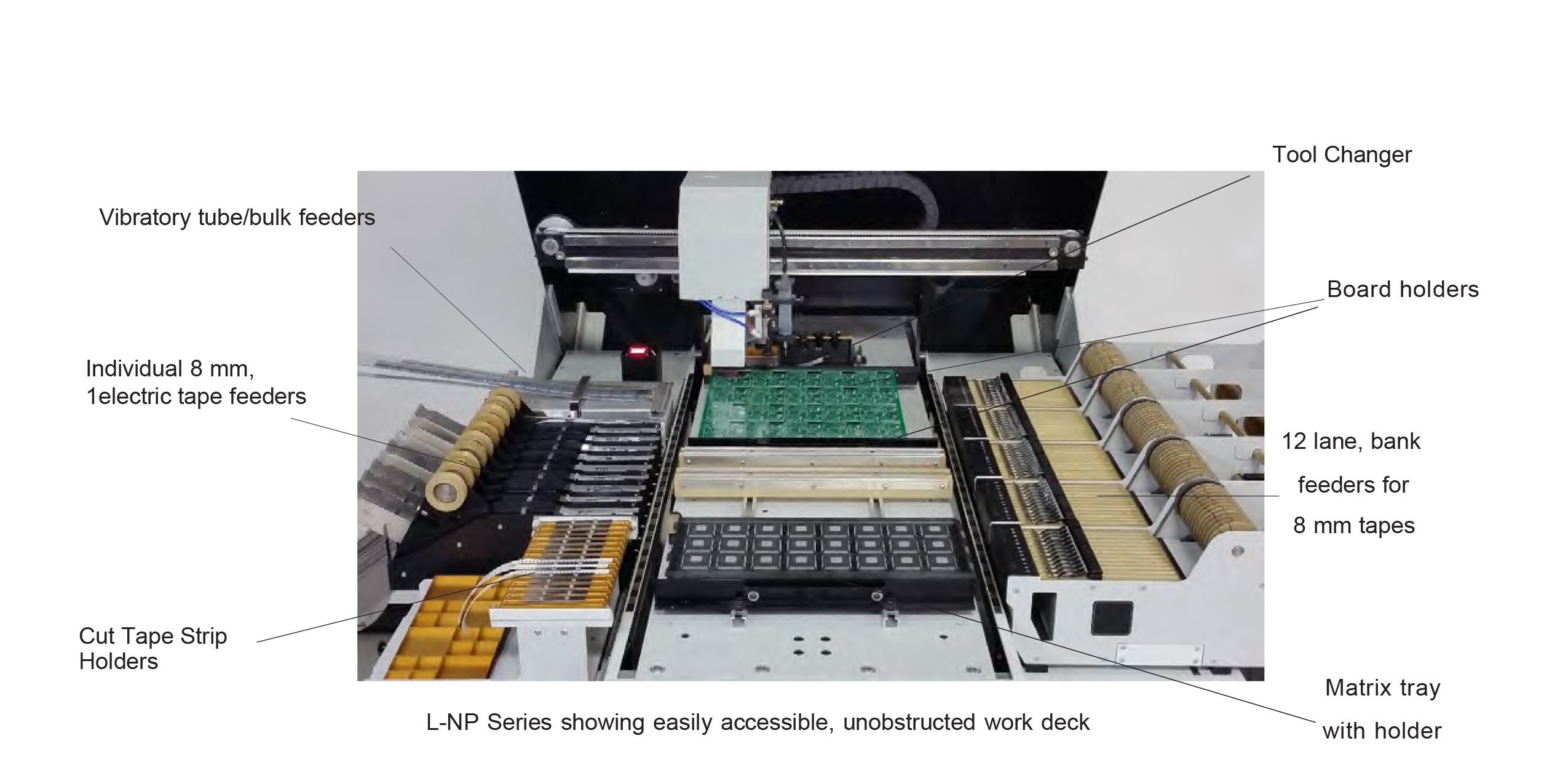

  • Easy to change feeders are available for tape, tube, bulk or matrix tray components
  • Standard tape feeder sizes include 8 mm, 12mm, 16 mm, 24 mm, 32 mm and 44 mm
  • The vibratory feeder can handle loose and tube components
  • Cut Tape Strip Holders are available in various configures from 8MM up to 24MM width lanes
  • Unique SuperStripTM feeders are a convenient way to use short tape strips
  • Feeder positions are pre-programmed for quick set-up





Specifications

Max board area . . . . . . . . . . . . . . . . . . . . . .13.5” x 22” (343 x 560 mm)
Max travel area . . . . . . . . . . . 22”(X axis) x 22”(Y axis) (560 x 560 mm)
Z axis max travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5” (38 mm)
Board thickness . . . . . . . . . . . . . . . . 0.020”- 0.156” (0.5mm - 4.0 mm)
Typical verifiable placement rate . . . . . . . . . . . . . . . . . . 1000-1800 cph
Max placement rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2100 cph
Placement accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . ±0.004” to 0.001"
Fine pitch capability . . . . . . . . . . . . . . . . . . . . . . . . . . See Chart Above
Smallest component capability. . . . . . . . . . . . . . . . . . See Chart Above
Largest component size . . . . . . . . . . . . . . . 1.378” (35mm) square body
Max no. of feeders, 8mm tape width . . . . . . . 64 (individual), 96 (bank)
Individual tape feeders . . . . . . . . . 8, 12, 16, 24, 32 & 44 mm (Electrical)
Cut Tape Strip Holders . . . . . . . . . . . . . 8mm up to 24mm width lanes
Vibratory feeders . . . . . . loose, tube, stick ( Freq. & amplitude control)
Matrix Tray Feeders . . . . . . . . . . . . . . . . with Board/Matrix tray holders
Component orientation Ø-axis motion . . . . . . . . . . . ±360° in 0.90° step
Board holding . . . . . . . Edge clamp w/optional board support tooling
Centering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centering Fingers
Data entry: coordinate entry, “teach” mode with color CCD camera, CAD download
Vision system . . . . . . . . . . . . . . . . . . . . . . . . Color CCD card camera
Automatic 4 position tool changer . . . . . . . . additional changer optional
Operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Windows®
Dispenser option . . . . Time & pressure, clean dry air @ 80 psi required
Power . . . . . . . . . . . . . . . 120 VAC, 50/60Hz, 220-240 VAC available
Compressed air . . . . . . . . . . . . . . . . . . . . . . .Shop Air Required, 60 psi
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . .15” flat screen monitor included

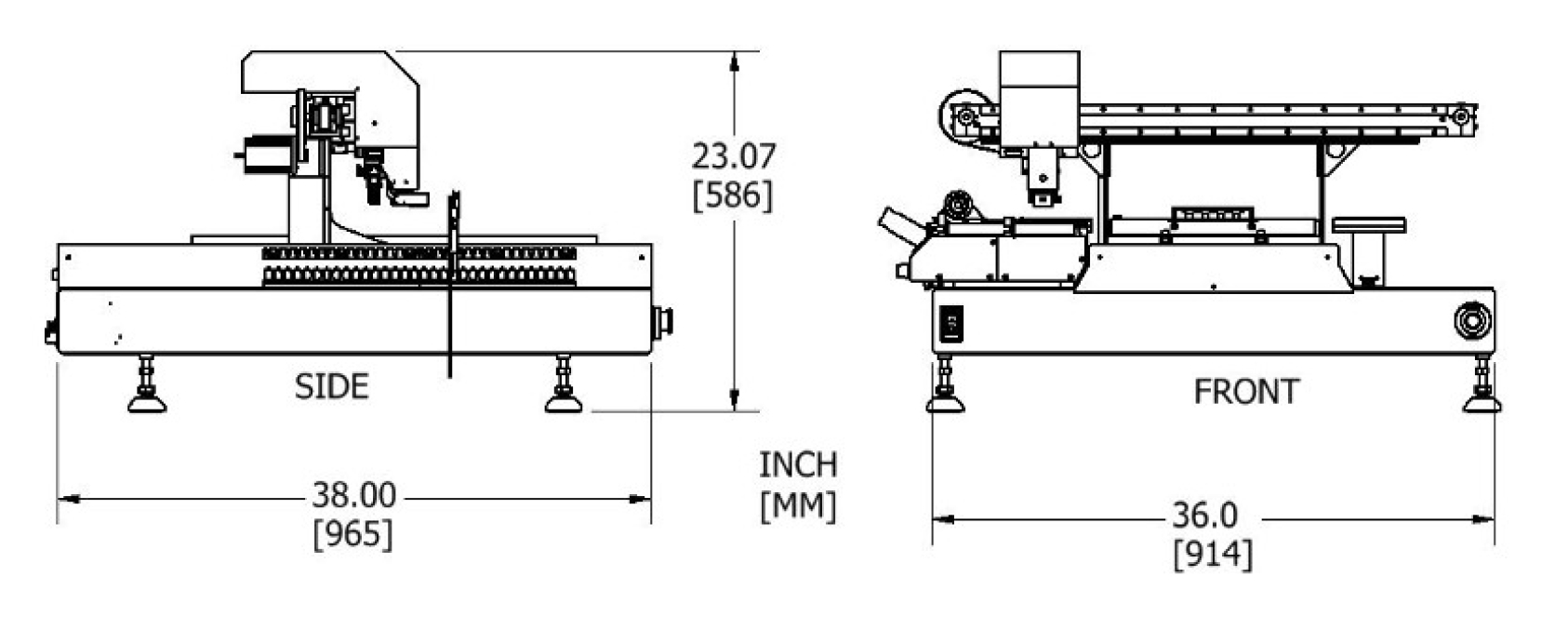

System dimensions . . 40” x 42” x 25”h (1016 x 1067 x 635 mm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 200 lbs (114 kg)

Machine Options
L-NC4 . . . . . . . . Extra 4 position nozzle changer - for 8 total positions
L-LD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Liquid dispenser
L-BHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Board support
L-UCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CAD editor software option
L-SCV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vacuum - self contained

Feeder Options
L-VF . . . . . . . . . . . . . . . . . . . . . . . Vibratory tube/loose feeder - option
L-T (tape feeders). . . . . . . . . . . . . . 8, 12, 16, 24, 32, & 44 mm - option
L-MBH . . . . . . . . . . . . . . . . . . . . . Matrix tray holders (set of 2) - option
L-LCB8 . . . . . . . . Cut tape strip holder. Holds up to 15 8mm lanes.
L-LCB8-12 . . . Cut tape strip holder. Holds (8) 8mm & (3) 12mm lanes.
L-LCB12 . . . . . . . . Cut tape strip holder. Holds up to (11) 12mm lanes.
L-LCB16-24 . . Cut tape holder. Holds (2) 12mm, (3) 16mm & (3) 24mm lanes.

L-SS-XX . . . .Dual Lane SuperStripTM feeder for strips from 1” to 12”- option

(XX indicates tape width: 8, 12, 16, 24, 32, 44, and 56 mm)

L-BF-12. . . . . . . . . . . . . . . . . . . . . 12 lane bank feeder for 8 mm tapes
L-BFRH-12 . . . . . . . . . . . . . . . . . . Reel holder for L-BF-12 bank feeder



* Custom options, nozzles and feeders available - contact factory.
